INDUSTRIAL PARTS WASHERS

Compact Roll-in Door Parts Washer

Compact roll-in door parts washer...the CE-2000 is one of the best selling jet washers on the market...this sleek parts washer maximizes work space while minimizing the footprint...and you don't need room for door swing! details

Precision Cleaning Parts Washer

Better Engineering excels in precision cleaning applications. Such parts cleaning systems will usually have 2 or more tanks as well as fresh rinse and drying stages. Cleaning is at the micron level. details

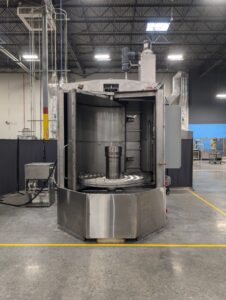

Top Loaded Parts Washer

If you prefer a top loaded parts washer, there are four (4) standard models from which to choose...the turntable diameters are 25", 50", 60" and 70" respectively. The larger models have powered lids. details

20,000 lb Capacity Parts Washer

The weight capacity of your parts washer can be as high as 50,000 lbs. Better Engineering has proven turntables and support structures for the heaviest parts cleaning applications. details

Vertical Door Parts Washer

Some parts washers require 1 or 2 vertical doors to fit into a conveyor line. This style parts cleaning system will have powered doors and a turntable that automatically indexes to the load / unload position. details

Jumbo Parts Washer

This giant parts washer has a 132" diameter turntable, 130" working height, and a 25,000 weight capacity. The unit was designed to ship as multiple pieces that could be bolted together on site. details

Parts Washer with 180" Dia Turntable

This huge parts washer has a powered roll-in door. The operator just pushes a button and the door opens and closes at 2 different speeds. When open, the turntable is completely accessible for 30,000 lb loads. details

Single Stage Parts Washer

From small single-stage belt washers to huge multi-stage systems, Better Engineering offers a broad spectrum of conveyor washers. All conveyor washers are built to the highest standards. details

Fully Automated Belt Washer

This parts washer features a pick and place unit on the load end and an indexing chain conveyor. The most extraordinary aspect of this conveyor washer is that there are 8 cleaning stages packed into an 8ft. long chamber. details

14" Belt Washer...Multi Stage Parts Washer

Better Engineering's C-14 Cyber-jet line is at the very top of its' class. The canopy of each module hinges open and locks into position for complete interior access. This conveyor washer is stainless steel inside and out. details

24" Belt Washer...Multi Stage Parts Washer

The C-24 Cyber-Jet line is also a truly modular conveyor washing system. All modules as well as the load and unload ends bolt together so that you can expand the system in the future. details

Monorail Style Parts Washer

If you need a monorail style conveyor washer, B.E. offers many styles...we can design the parts washer so the beam is inside or above the cleaning chamber...we can provide just the beam or a complete oval monorail conveyor. details

Large Two Tier Conveyor Washer

This five(5) stage belt washer has two 40" wide conveyors, one above the other. This is just another example of how Better Engineering can customize a parts washer for your company. details

High Speed Conveyor Parts Washer

This belt washer is running parts through the system at 40 FPM...a 2nd belt lays on the relatively light parts so that they can't shift on the belt and get scratched...this parts washer has seven(7) stages. details

Parts Washer for Cleaning Pill Slats

This washer cleans pill slats which are used in pharmaceutical pill counting machines...this turntable style parts washer has a working tank that automatically empties after each wash and rinse stage. details

Parts Washer for Filling Machine Components

This F-7000 turntable style cleaning system, washes and sanitizes parts for a cosmetic plant (the components of a filling machine). After the parts are washed and rinsed, they are sanitized with steam. details

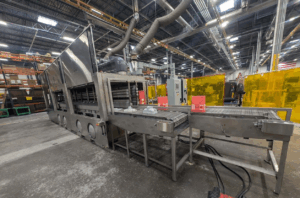

Conveyor Washer for Plastic Totes

This plant needed to wash high volumes of plastic totes and wanted to load and unload from the same end. This conveyor washer cleans on the incoming side, rinses around the turn, and dries on the return leg. details

Two Basket Tumbling Parts Washer

The CJ-2 and CJ-4 parts washers offer up to nine(9) cleaning stages including spray, immersion, and ultrasonic stages. The operator slides 2 or 4 baskets/ fixtures into the rotor which, in cycle, spins on a horizontal axis. details

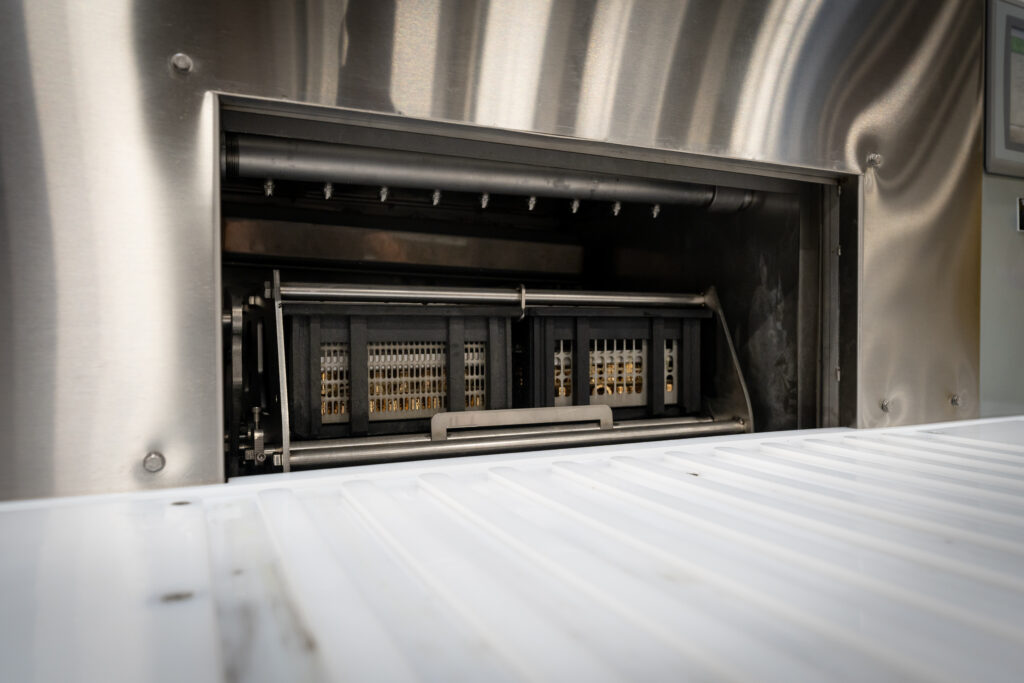

Four Basket Tumbling Parts Washer

During the immersion stages, the baskets/ fixtures are completely immersed and then taken out of the water bath on each revolution of the rotor ( variable speed drive). This creates a powerful flushing action. details

Rotary Drum Washer...Mass Production

For mass production (nuts, bolts, bullets, pipe fittings, etc...) or for cleaning bulk materials such as scrap metals and plastics, BE's rotary drum washers are perfect. Drum sizes start at 12" diameter and go up to 48". details

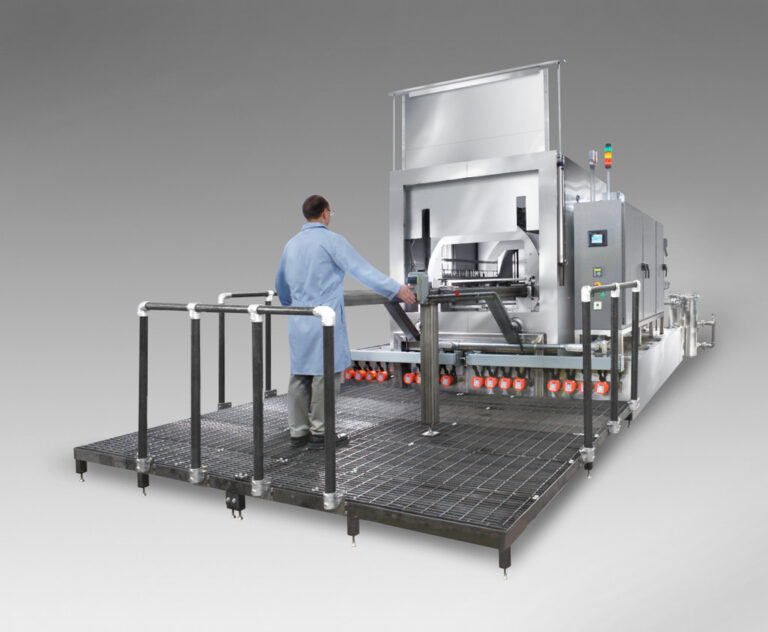

RTO-1000 Parts Washer

An operator ( or robot) loads parts onto a dolly..the dolly is powered into the cleaning chamber and the door automatically closes. The parts are then washed and dried and ready to be unloaded in as little as 30 seconds. details

RTO-2000 ''Carousel'' Parts Washer

This unit has a slow moving turntable so that parts can be washed, rinsed, and dried in just one revolution. The turntable pauses each time clean parts reach the unload position. details

RTO-3000 Belt Washer with Return Conveyor

Better Engineering can also customize one of their belt washers to create an RTO system. Hi-flex conveyor belts are used to take a tight radius turn. To reduce system length, some stages can be positioned on the return leg. details

Parts Washer for Long Shafts/Rollers

For cleaning long shafts, rollers, or tubes this spray washer is ideal. The long, narrow cabinet can have a stationary rack or mechanisms that rotate or spin the part(s) on a horizontal axis. The lid is powered up and down. details

Fully Automatic Parts Washer for Tubes

This parts washer is designed to clean 3",4" and 5" dia tubes that are up to 60" long. The tubes roll through multiple spray & immersion stages as well as a final dry stage such that the ID's and OD's are uniformly clean and dry. details

Batch Loaded Parts Washer for Tubes

This system has a heavy duty rack that can be loaded outside the parts washer and then hoisted onto the turntable. This customer bought multiple racks to maximize the machine run time. details

Parts Washer with High Pressure Blasting

This conveyor washer blasts off an inert material using a 75 HP high pressure pump that outputs 2,000 PSI spray pressure...the part oscillates back and forth in the spray chamber to get multiple hits from different angles. details

Spin Clean Parts Washer

Some complex parts like this engine block have to rotate on a horizontal axis for thorough cleaning. This parts washer completely cleans and dries engine blocks in less than 10 minutes. details

Special Fixtures for Any Parts Washer

Better Engineering is expert at fixture design and has a vast library of fixtures that have been created over the years. Proper fixturing is critical to cleaning and to a machine being user friendly. details
